Electric Motors
Omega Motor
Omega Motor IE3 and IE4 three-phase induction motors in frames 80–355: standard, compact, braked, two-speed, smoke extraction and marine types.
Omega Motor was founded in 2014 in Dudullu, Istanbul, by Yüksel Gamgam, who started series production of induction motors in Turkey back in 1961. From the outset the company focused on high-efficiency motors and redesigned every frame size from 80 to 355, both electrically and mechanically. All motor components are made in-house, and the test laboratory can run full-load tests on induction motors up to 900 kW.
Omega keeps the standard power-to-frame relationship: moving to IE3 or IE4 does not require a larger frame. Existing IE1 and IE2 motors can therefore be replaced with more efficient units without changing the mounting dimensions.
The range covers standard, compact, single-phase, forced-cooled, braked, two-speed, smoke extraction and marine motors. Send us your technical requirements to receive a quotation for the right Omega motor.
Technical specifications
- Efficiency class
- IE3 / IE4 (IEC 60034-30-1)
- Frame sizes
- 80 – 355
- Power range
- 0.55 – 500 kW
- Number of poles
- 2 - 4 - 6 - 8
- Frequency
- 50 / 60 Hz
- Protection class
- IP55 (standard)
Custom manufacturing options
- IP56 – IP65 – IP66 protection
- Class H insulation and special insulation for inverter duty
- Special winding for non-standard voltage and frequency
- NU (cylindrical roller) bearing, insulated bearing or insulated end shield
- Special shaft dimensions and shaft material
- PTC thermistors, bimetal thermostats and PT100 sensors
- Anti-condensation winding heaters
- Electromagnetic brake and encoder
- Forced cooling (independent fan)
- Paint system for corrosivity class C5
Applications
- Pumps and compressors
- Ventilation and fan systems
- Textiles
- Power generation
- Iron and steel plants
- Marble cutting machines
- Cement plants
- Geared drives
- Paper production
Products

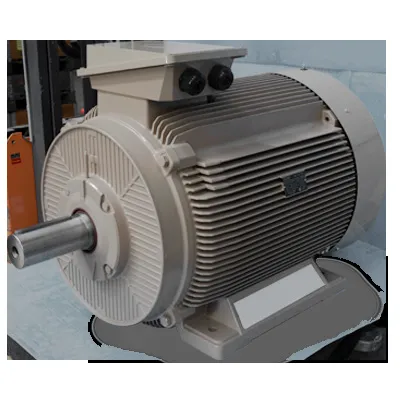

Standard Motors
Omega IE3 and IE4 squirrel-cage three-phase induction motors in frames 80–355, 0.55–500 kW, for direct-on-line (DOL) operation.
View

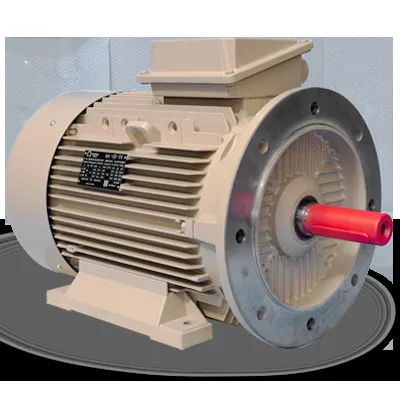

Compact Motors
Omega compact motors: IE3 three-phase motors delivering the standard rated output in one frame size smaller, frames 80–315, 1.5–250 kW.
View

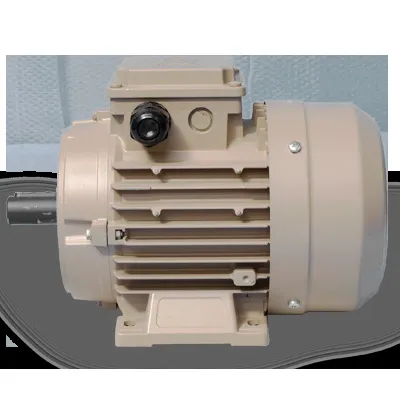

Single-Phase Motors
Omega single-phase motors: permanent-capacitor designs for low vibration and noise, frames 80–112, 2 and 4 poles.
View

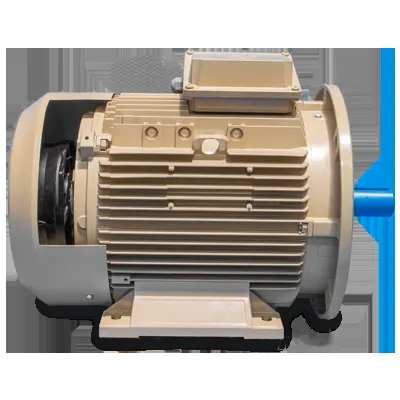

Forced-Cooled Motors
Omega forced-cooled motors: IE3 / IE4 three-phase motors with an independent fan for inverter-driven variable-speed duty, frames 80–355.
View

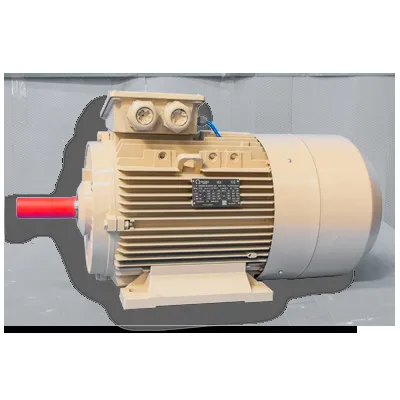

Brake Motors
Omega brake motors: IE3 / IE4 three-phase motors with a spring-applied DC brake at the non-drive end, frames 80–250, 0.55–55 kW.
View

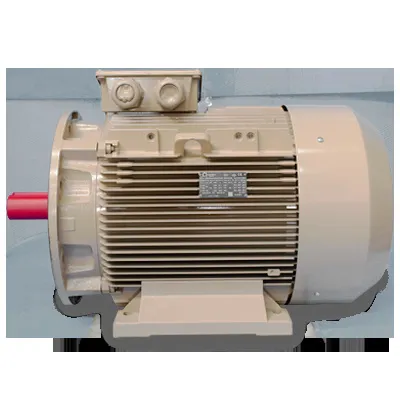

Two-Speed Motors
Omega two-speed motors: Dahlander or two-winding three-phase motors for constant or variable torque loads, frames 80–355.
View

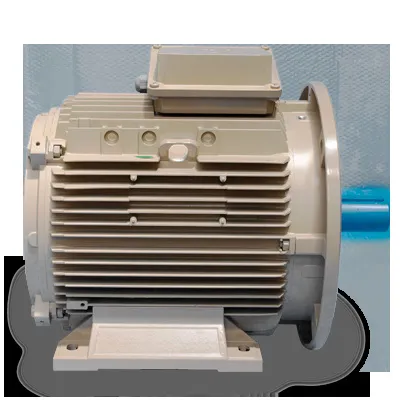

Smoke Extraction Motors
Omega smoke extraction motors: special motors that keep running at high temperature for a set time during a fire to clear smoke.
View

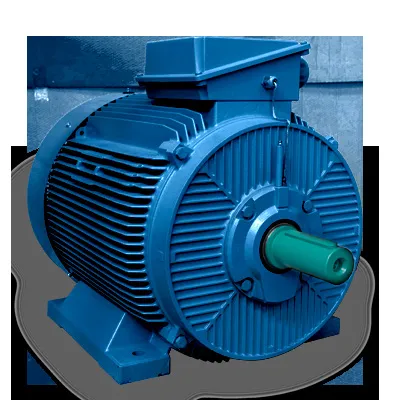

Marine Motors
Omega marine motors: high-efficiency motors for ship decks, with insulation, paint and protection suited to marine conditions.
ViewLet’s choose the right product for your project
Tell us what you need and our technical team will get back to you with the best product and price.
