Electric Motors
Emtaş
Emtaş general-purpose, brake, two-speed, slip-ring, vibration, deep well pump and tower crane motors, made in Ankara, Türkiye.
Emtaş is the electric motor brand of Elsan Elektrik A.Ş., which manufactures at its plant in Etimesgut, Ankara, and is one of Türkiye's earliest electric motor manufacturers. Today it builds IEC standard motors up to 400 kW as well as special-purpose motors designed around customer requirements.
The standard range covers general-purpose industrial motors, brake motors, two-speed motors, slip-ring induction motors, vibration motors and deep well pump motors. Sector-specific products include water-cooled motors, tower crane motors, circular saw motors, torque motors, traction motors, and forklift and boat motors.
As Genel Motor Redüktör, we help you choose the right frame size, number of poles and mounting arrangement for your Emtaş motor application.
Technical specifications
- Production site
- Etimesgut, Ankara (Türkiye)
- Power range
- Up to 400 kW in IEC standard motors
- Product groups
- Standard and sector-specific electric motors
Applications
- General industrial machinery
- Lifting and handling systems
- Tower cranes
- Deep well pumps
- Vibrating screens and feeders
Products

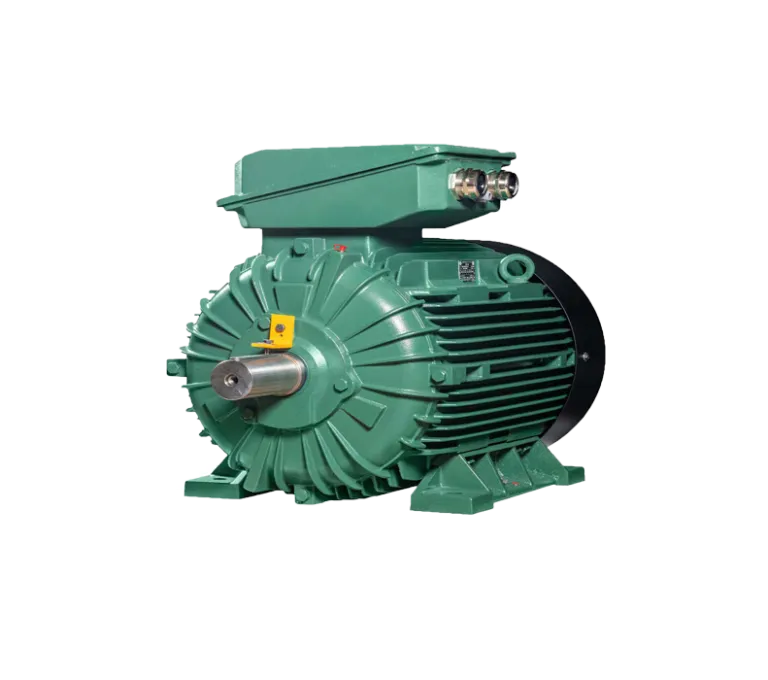

General Purpose Industrial Motors
Emtaş general-purpose IEC motors: frame 90–355, 0.55–400 kW, 2–16 poles, cast iron housing, IP55/IP65, class F/H insulation.
View

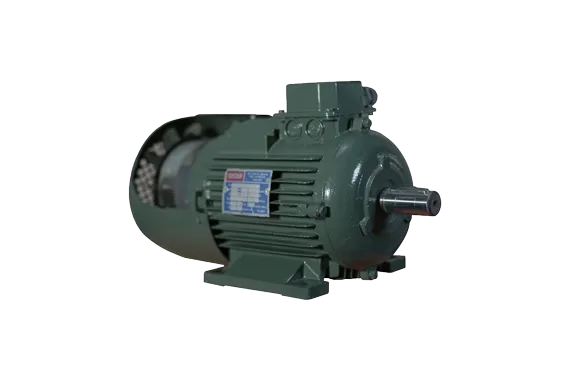

Brake Motors
Emtaş brake motors: frame 90–200, 0.55–30 kW, 2–16 poles, IP55, class F insulation, cast iron housing.
View

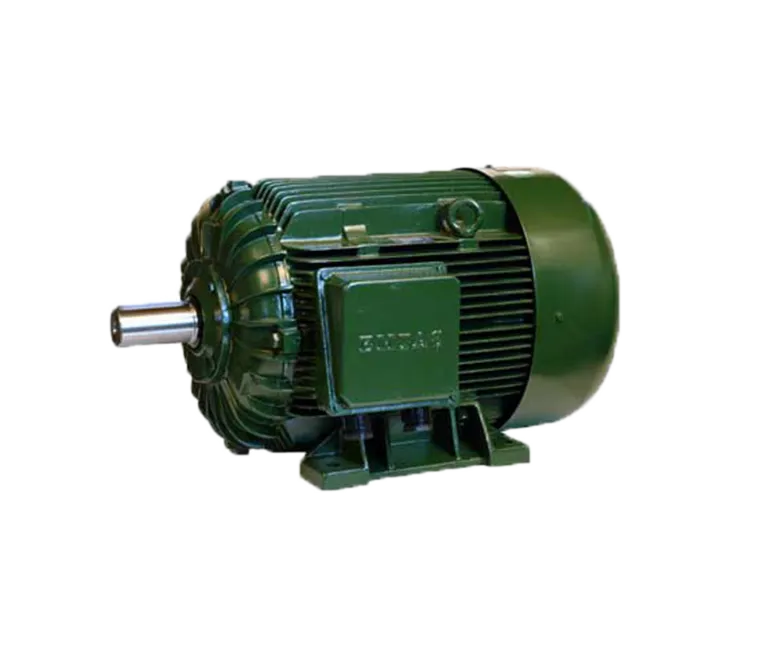

Two-Speed Motors
Emtaş two-speed pole-changing motors: frame 90–355, pole combinations from 4/2 to 16/6, IP55/IP65, class F/H insulation.
View

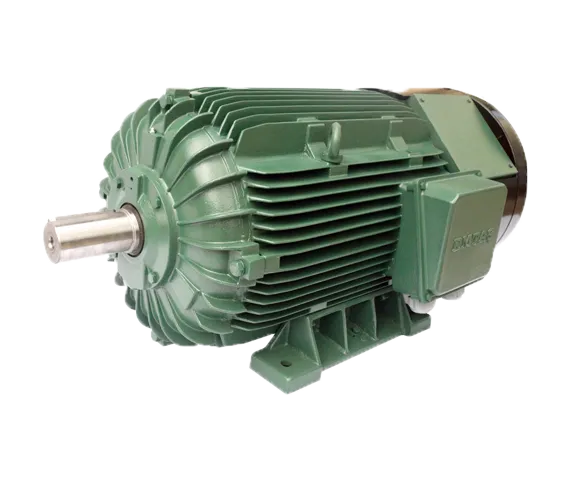

Slip-Ring Induction Motors
Emtaş slip-ring (wound-rotor) induction motors: frame 132–315, 2.2–160 kW, 4–8 poles, IP55, S3 intermittent duty.
View

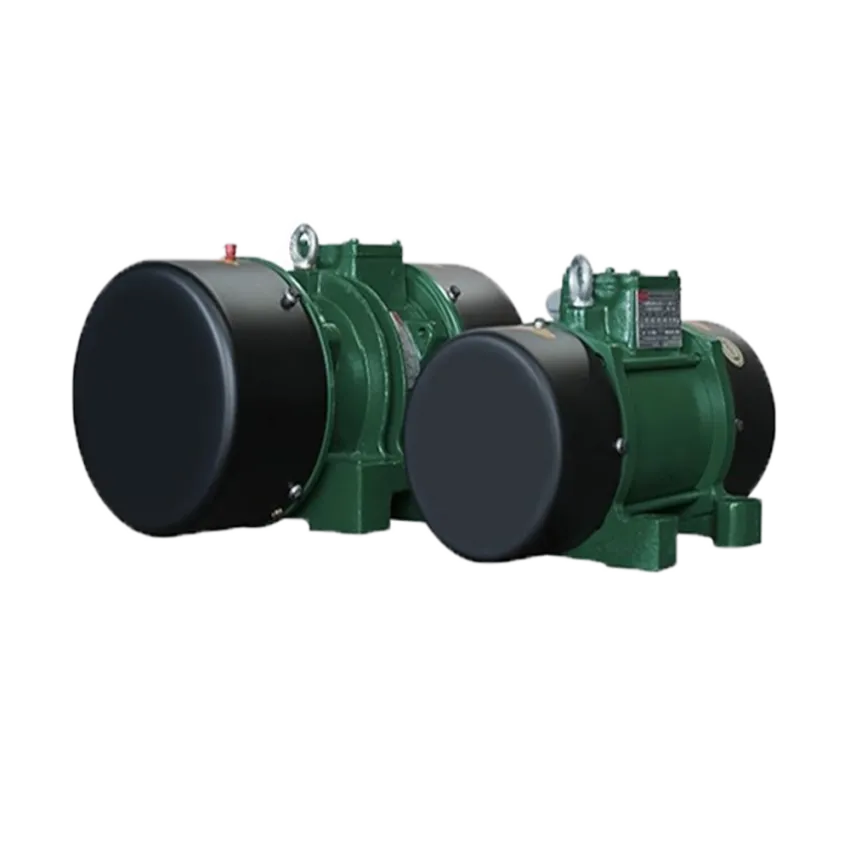

Vibration Motors
Emtaş vibration motors (VEMS): frame 80–200, 0.20–15 kW, 2–10 poles, spheroidal graphite iron housing, IP55, class F.
View

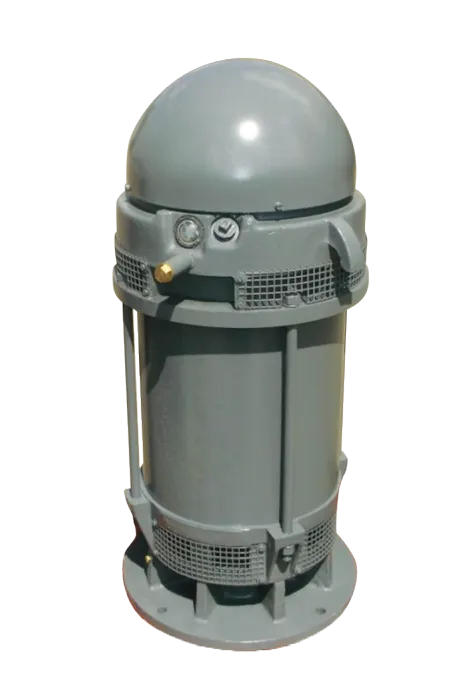

Deep Well Pump Motors
Emtaş deep well pump motors: frame 100–315, 3–370 kW, 2 and 4 poles, steel frame, internally ventilated, IP23 (IP55 optional).
View

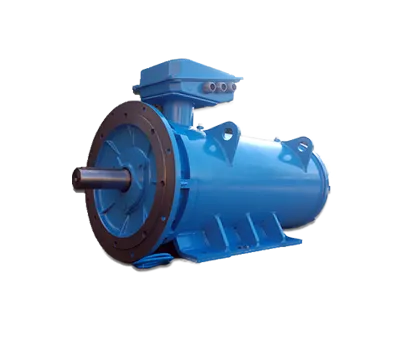

Water-Cooled Motors
Emtaş water-cooled motors: frame 112–355, up to 500 kW, rated voltage up to 1000 V, 2–8 poles, foot or flange mounting.
View

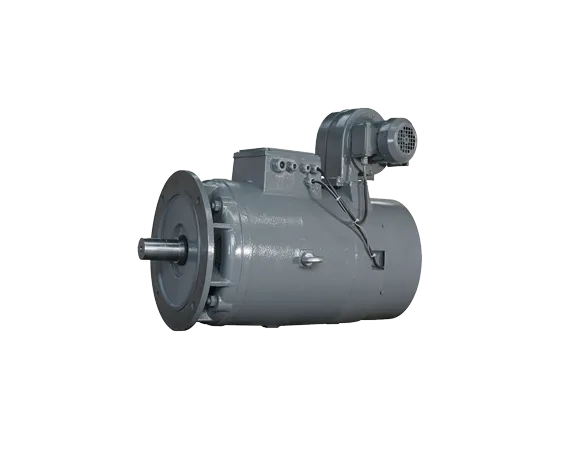

Tower Crane Motors
Emtaş tower crane motors: hoist motors up to 55 kW, slewing motors up to 140 Nm and travel motors up to 7.5 kW, S3 duty, B5 flange.
ViewLet’s choose the right product for your project
Tell us what you need and our technical team will get back to you with the best product and price.
