ELK Motor
ELK Motor IE2, IE3 and IE4 three-phase, single-phase and ATEX ex-proof electric motors in IEC frames 63–315, aluminium and cast iron.
ELK Motor was established in the Çerkezköy Organized Industrial Zone by the main shareholders of Yılmaz Redüktör as an extension of the group's product family. Every production step, from engineering and machining to casting, sheet metal processing and winding, takes place at the Çerkezköy plant, and every motor goes through final inspection and testing before shipment.
The range includes three-phase motors in IEC frames 63–315, single-phase motors in frames 63–90 and ex-proof motors for Zone 2/22 and Zone 1/21. All series follow European standards and are built in efficiency classes IE2, IE3 and IE4. Because the base design already meets IE3, moving from IE2 to IE3 does not change the mounting dimensions.
Standard motors are suitable for inverter operation. Brakes, encoders, forced-ventilation fans and backstops can be fitted at the non-drive end to suit the application.
Technical specifications
- Efficiency class
- IE2 / IE3 / IE4
- Frame sizes
- IEC 63 – 315
- Housing material
- Aluminium and cast iron
- Number of poles
- 2 - 4 - 6 - 8
- Protection class
- IP55 (standard); IP56, IP65, IP66
- Insulation class
- F (standard), H (optional)
- Duty type
- S1 – S2 – S3 – S4
Custom manufacturing options
- PTC thermistors as standard from frame 160
- Thermostats, PT100 / PT1000 sensors and winding heaters
- Electromagnetic brake, encoder and forced-ventilation fan at the non-drive end
- Mechanical backstop
- Reinforced bearing arrangement
- Special shafts and flanges
- Motors for 60 Hz supplies and special voltages
- Rain canopy and second shaft extension
Applications
- Cement
- Iron and steel
- Paper
- Water and wastewater
- Petrochemicals and energy
- Machine building
- HVAC
- Woodworking
- Textiles
- Food, agriculture and livestock
- Logistics and warehousing
Products
Three-Phase Asynchronous Motors
ELK standard three-phase induction motors: IE2, IE3 and IE4, IEC frames 63–315, aluminium and cast iron housings, inverter-ready.
View

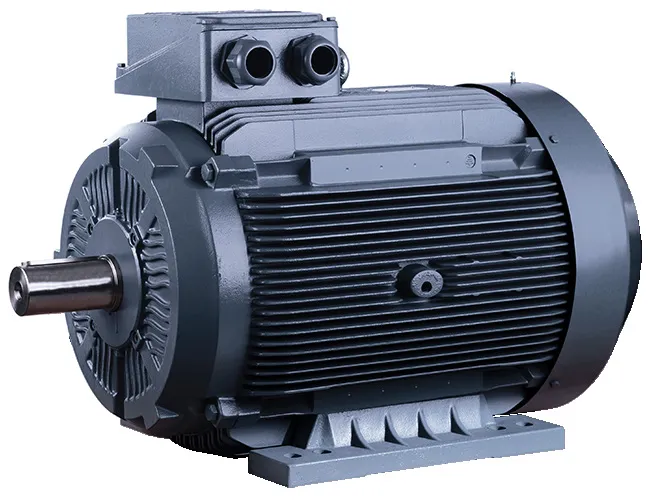

Compact Motors
ELK compact motors: three-phase motors in aluminium or cast iron that deliver the IEC rated output in a smaller frame or core length.
View

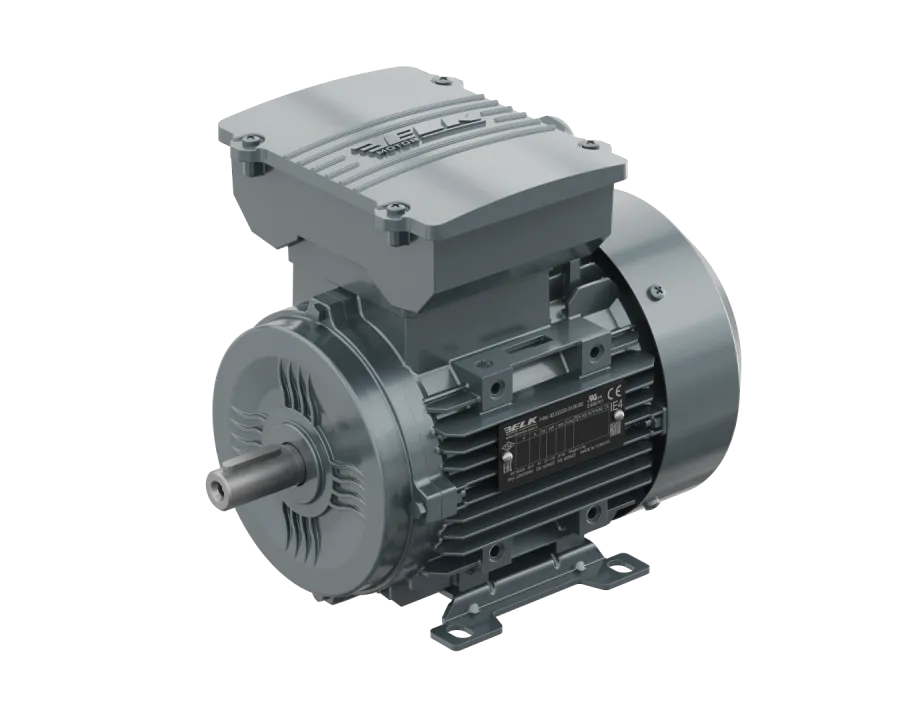

Single-Phase Permanent Capacitor Motors
ELK 2MD series single-phase permanent capacitor motors: frames 63–90, 0.12–2.2 kW, 2 and 4 poles, 220 V 50 Hz, IE2.
View

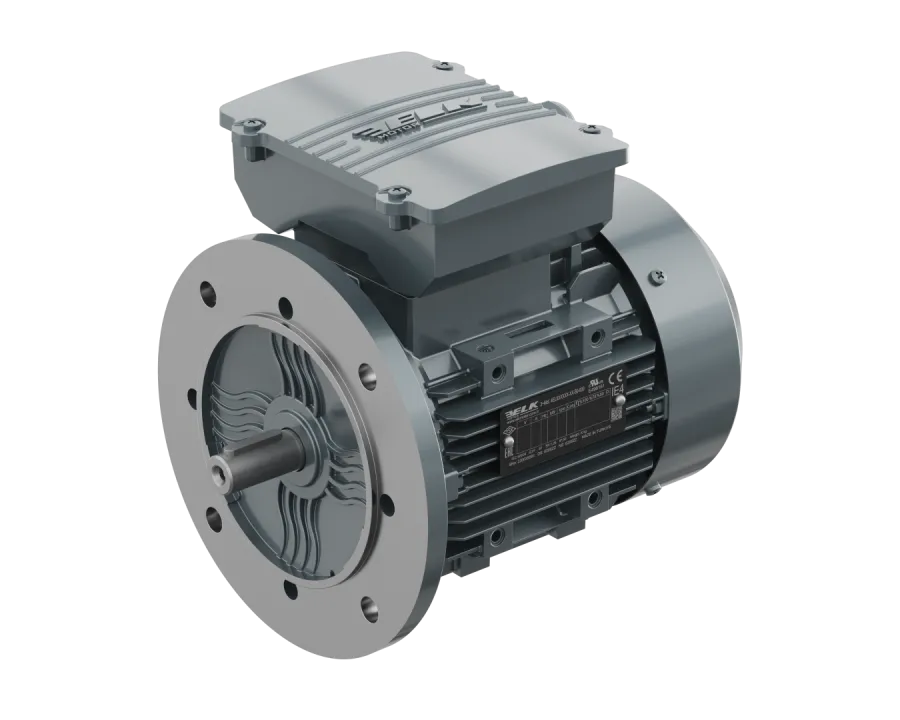

Single-Phase Capacitor Start and Run Motors
ELK 2MS series capacitor start and run single-phase motors: high starting torque, frames 63–90, 0.12–2.2 kW, IE2.
View

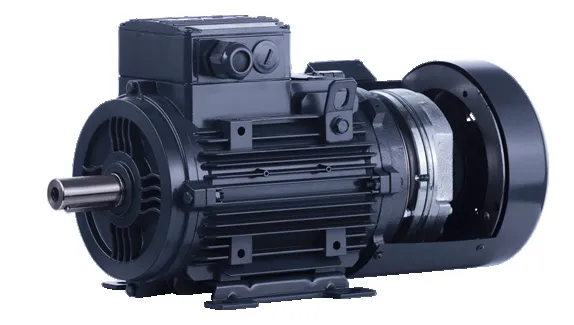

Brake Motors
ELK brake motors: electromagnetic brake at the non-drive end for every frame size, 5–1600 Nm braking torque, 24 / 230 / 400 V DC supply.
ViewExternally Cooled (Forced-Ventilated) Motors
ELK externally cooled motors: three-phase motors with an independent forced-ventilation fan for inverter drives at low speed or wide speed ranges.
ViewTwo-Speed Motors
ELK two-speed motors for applications needing two operating speeds, including crane-duty drives designed for S3 intermittent duty.
View

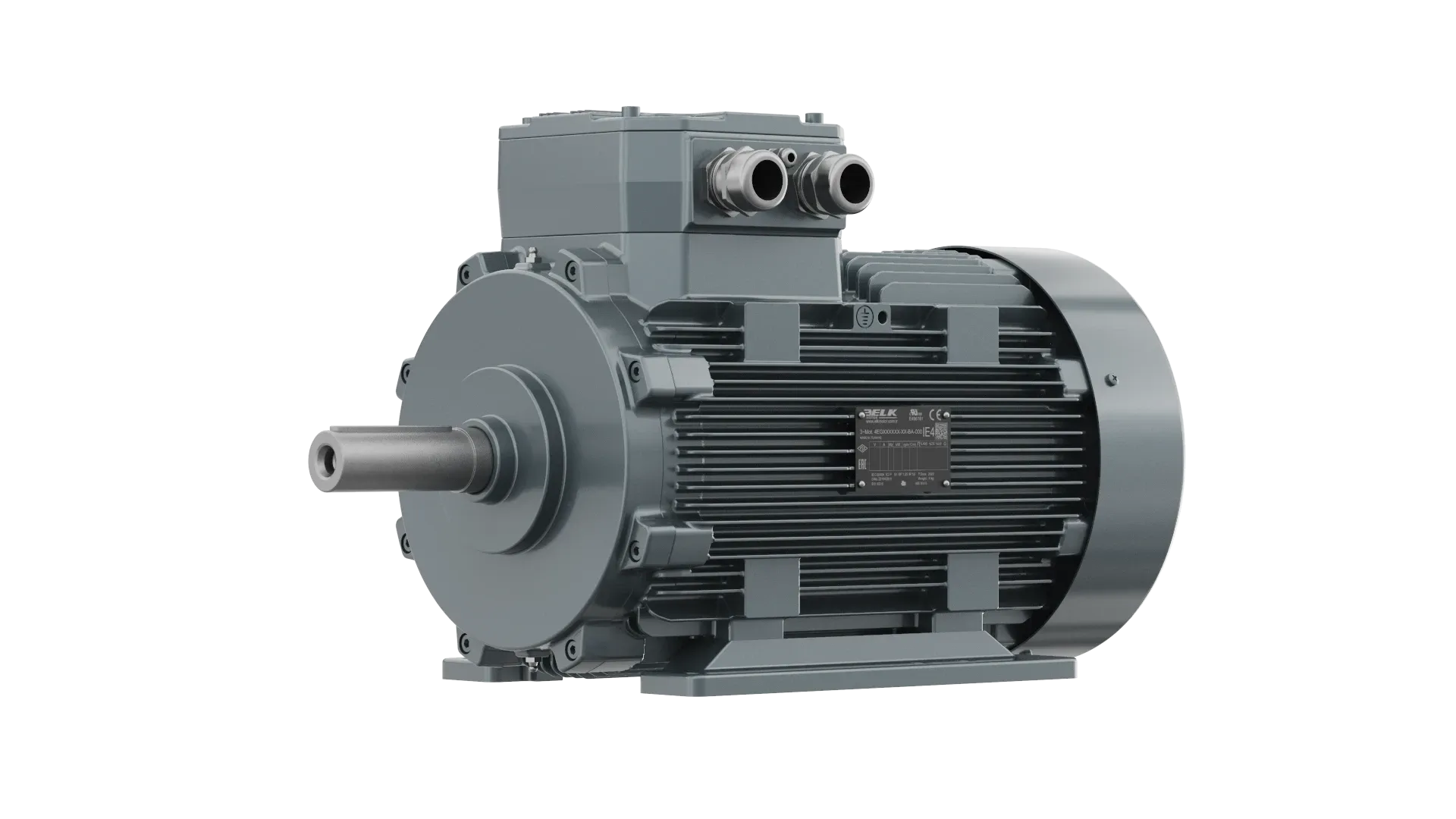

Ex-Proof Motors (ATEX Zone 2/22 and Zone 1/21)
ELK ATEX ex-proof motors: frames 63–315 for Zone 2/22 and 100–280 for Zone 1/21 (Ex db), IP66 protection, IE2–IE4 efficiency.
