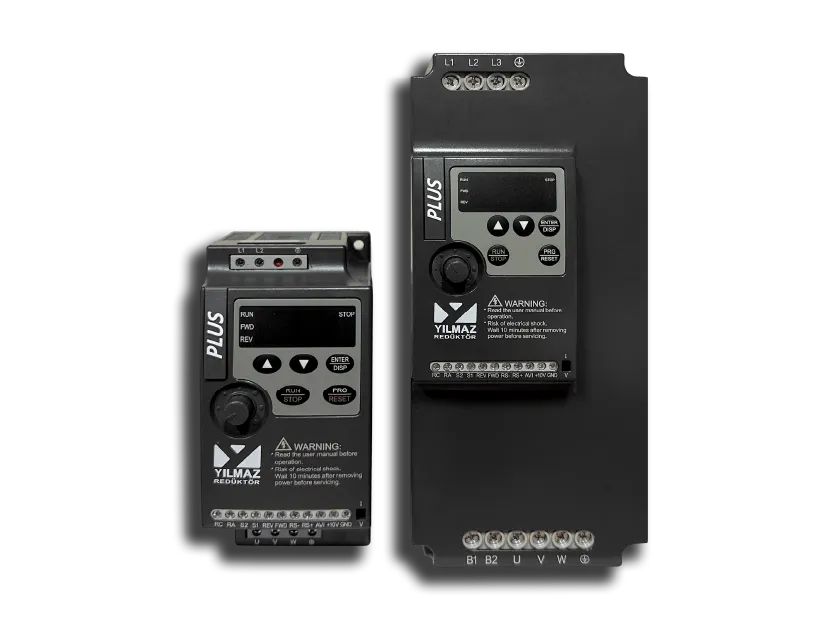

YB1000 / YB1000 Plus Basic Series Variable Frequency Drives
Yılmaz Redüktör YB1000 and YB1000 Plus: compact V/f cabinet drives up to 22 kW with built-in potentiometer and RS485 Modbus.
Request a quote for price and lead time — we will get back to you shortly.
- Brand
- Yılmaz Redüktör
- Product group
- Speed Control Devices
YB1000 and YB1000 Plus are Yılmaz Redüktör's basic series variable frequency drives. These small, economical and easy-to-use cabinet drives combine a built-in potentiometer, digital inputs/outputs, an analogue input and RS485 communication, covering many standard applications without extra hardware.
Offering V/f control with torque boost, PID process control and a jog function, the YB1000 covers 0.37 – 22 kW and the YB1000 Plus 0.37 – 11 kW, with single-phase 230 V or three-phase 400 V supply models.
Custom manufacturing options
- Built-in potentiometer
- PID process control
- Jogging function
- Automatic motor identification
- Multi-function digital/analogue I/O
Technical specifications
- Power range (YB1000)
- 0.37 – 22 kW
- Power range (YB1000 Plus)
- 0.37 – 11 kW
- Supply voltage
- 1-phase 230 V (170…240 V) / 3-phase 400 V (330…440 V)
- Control method
- V/f (with torque boost)
- Overload capacity
- 150% for 60 s (heavy duty)
- Communication
- RS485 (Modbus)
- Protection class
- IP20
