Speed Control Devices
Yılmaz Redüktör
Yılmaz Redüktör (YR) variable frequency drives: cabinet, wall-mounted, motor-integrated and decentralized drives from 0.37 to 710 kW.
Alongside its gearboxes, Yılmaz Redüktör offers its own family of variable frequency drives under its "Automation Products" range. These drives are also known as YR Drives.
The range spans the economical YB1000 basic cabinet series, the vector-controlled YA2000 and YM1000 series, the YE8000 expert series with closed-loop control, the IP65 wall-mounted YP65 and motor-mounted YI1000 units, and the YDSK decentralized drives with PROFINET/EtherCAT. As Genel Motor Redüktör, we help you pick the right drive together with the gearbox and motor.
Technical specifications
- Power range
- 0.37 – 710 kW
- Supply voltage
- 1~230 V / 3~400 V
- Control methods
- V/f, SLVC, CLVC
- Series
- YB1000, YB1000 Plus, YA2000, YM1000, YE8000, YI1000, YP65, YP65-V, YDSK
Applications
- Conveyor systems
- Crane applications
- Pump applications
- Machine automation
- Logistics lines
Products

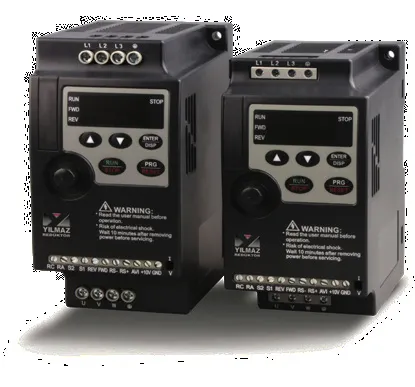

YB1000 / YB1000 Plus Basic Series Variable Frequency Drives
Yılmaz Redüktör YB1000 and YB1000 Plus: compact V/f cabinet drives up to 22 kW with built-in potentiometer and RS485 Modbus.
View

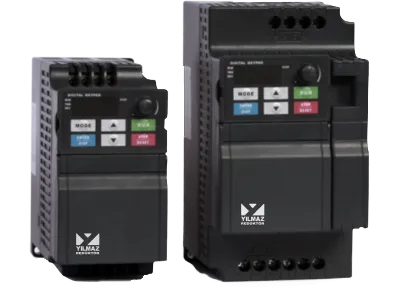

YA2000 Advanced Series Variable Frequency Drive
Yılmaz Redüktör YA2000: 0.37 – 450 kW high-performance cabinet drive with sensorless vector control and dedicated crane functions.
View

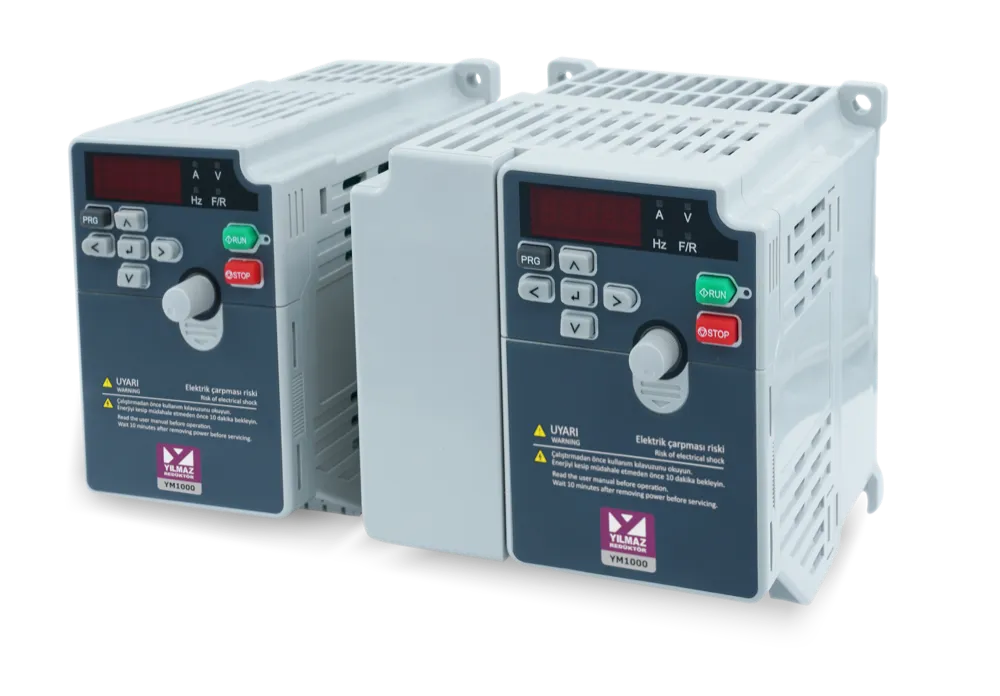

YM1000 Master Series Variable Frequency Drive
Yılmaz Redüktör YM1000: compact cabinet drive up to 450 kW with open/closed-loop vector control and EtherCAT or PROFINET options.
View

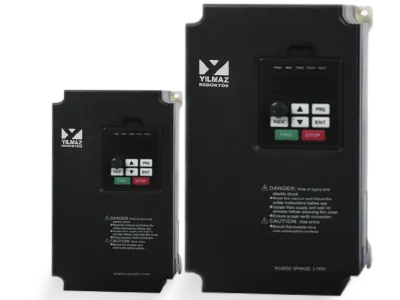

YE8000 Expert Series Variable Frequency Drive
Yılmaz Redüktör YE8000: high-performance cabinet drive up to 710 kW with closed-loop encoder vector control and PM motor control.
View

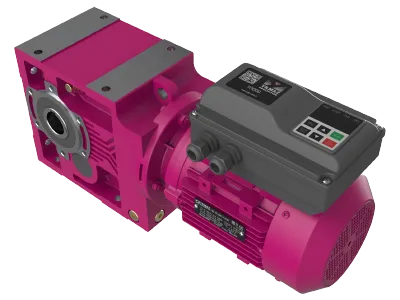

YI1000 Motor-Integrated Variable Frequency Drive
Yılmaz Redüktör YI1000: IP65 motor-integrated drive up to 3.7 kW, mounted directly on the motor with no control cabinet needed.
View

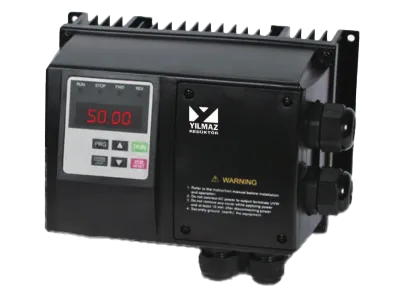

YP65 / YP65-V Wall-Mounted Variable Frequency Drives
Yılmaz Redüktör YP65 and YP65-V: IP65 wall- or motor-mounted drives up to 30 kW that need no control cabinet.
View

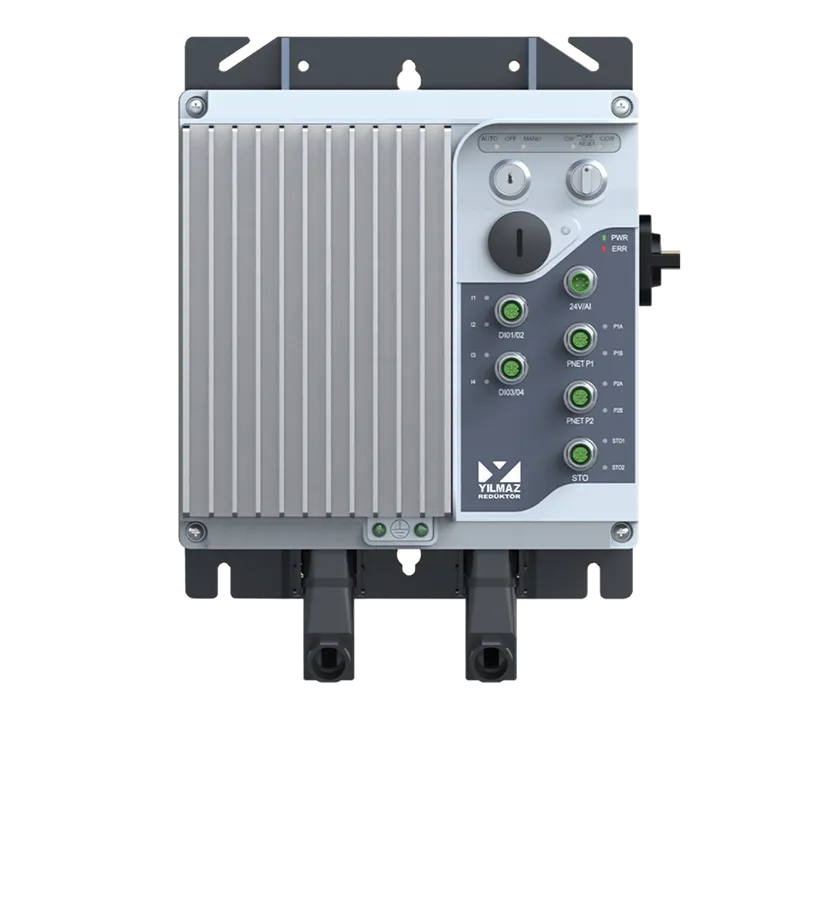

YDSK Decentralized Variable Speed Drive
Yılmaz Redüktör YDSK: IP65 decentralized drive mounted next to the motor, with PROFINET/EtherCAT and integrated STO.
ViewLet’s choose the right product for your project
Tell us what you need and our technical team will get back to you with the best product and price.
